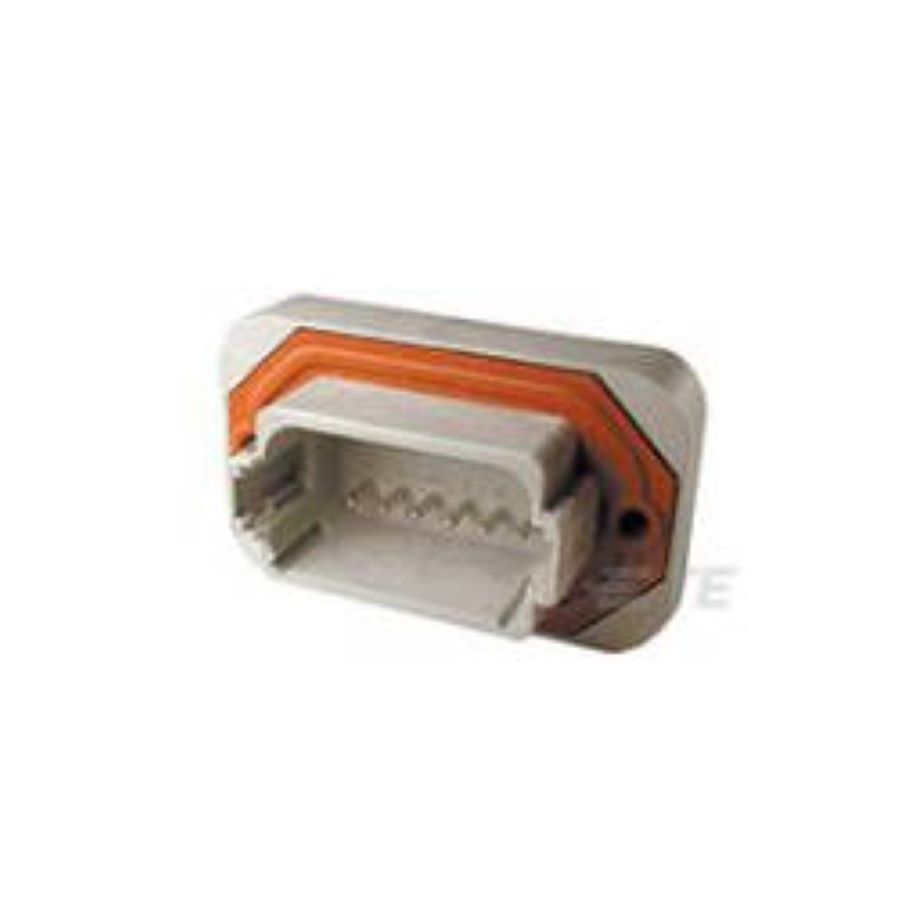

DT15-12PA
Manufacturer:
TE Connectivity
Mfr.Part #:
DT15-12PA
Datasheet:
Description:
Automotive Connectors Through Hole Number of Positions:12 Receptacle (Female) 16 AWG
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 59.21 mm |
| Width | 35.26 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 30.12 mm |
| Voltage Rating | 250 V |
| RoHS | Non-Compliant |
| Contact Plating | Nickel |
| Pitch | 4.445 mm |
| Current Rating | 13 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Grey |
| Number of Contacts | 12 |
| ELV | Compliant |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 9.1186 mm |
| Housing Material | Thermoplastic |
| Housing Color | Gray |
| Polarized | No |
| Hybrid Connector | No |
| Serviceable | No |
| Gender | Receptacle (Female) |
| Wire Gauge Range | 16 AWG |
| Packaging | Bulk |
| Termination | Solder |
Stock: 48
Distributors
pcbx
pcbxUnit Price$10.01626
Ext.Price$10.01626
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $10.01626 | $10.01626 |
| 10 | $8.81155 | $88.11550 |
| 25 | $8.07706 | $201.92650 |
| 50 | $7.80415 | $390.20750 |
| 100 | $7.54039 | $754.03900 |
